Product Name:Rotary Table
Max.workload kgs: 150KGS
Package: Wooden Case
Warranty:6 Months
Rotary Table
Description
|

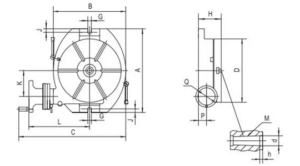

Code |
TS160A | TS200A | TS250A | TS320A | TS400A | TS500A | TS630A | TS800A | TS100A | TS1250A |
|
A |
260 | 290 | 330 | 410 | 530 | 640 | 820 | 980 | 1170 | 1400 |
|
B |
196 | 236 | 286 | 360 | 450 | 560 | 700 | 890 | 1080 | 1300 |
|
C |
332 | 369 | 422 | 493 | 612 | 752 | 898 | 1080 | 1295 | 1420 |
|
D |
160 | 200 | 250 | 320 | 400 | 500 | 630 | 800 | 1000 | 1250 |
|
G |
12 | 14 | 18 | 22 | 2222 | _ | 22 | |||
|
H |
75 | 80 | 90 | 110 | 140 | 158.5 | 160 | 245 | 250 | 283 |
|
J |
12 | 14 | 18 | 20 | 30 | _ |
30 |
|||
| K | 76 | 89.75 | 102.5 | 128.5 | 180 | 230 | 295 | 364 | 364 |
487.5 |
| L | 194 | 211 | 241 | 273 | 337 | 392 | 468 | 535 | 654 |
690 |
| M | MT2 | MT3 | MT4 | MT5 |
MT6 |
|||||
| P | 27 | 29.5 | 30.5 | 44 | 60 | 60 | 68 | 106 | 106 |
106 |
| Q | 125 | 140 | 160 | 180 | 220 |
250 |
||||
| d | 25 | 30 | 40 | 50 |
75 |
|||||
| h | 6 | 10 | 12 |
14 |
||||||
