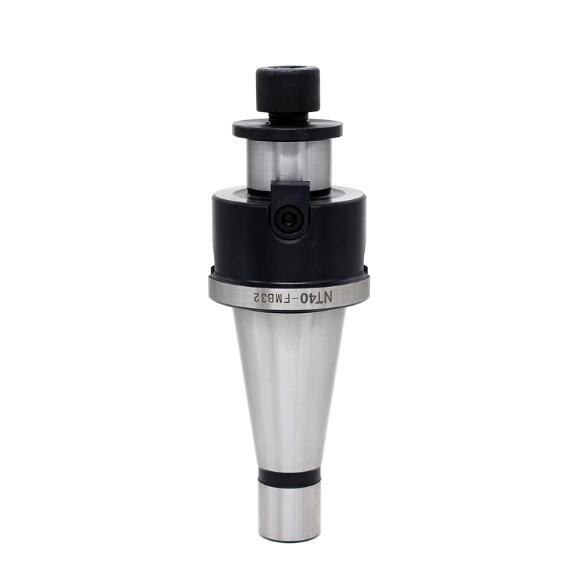

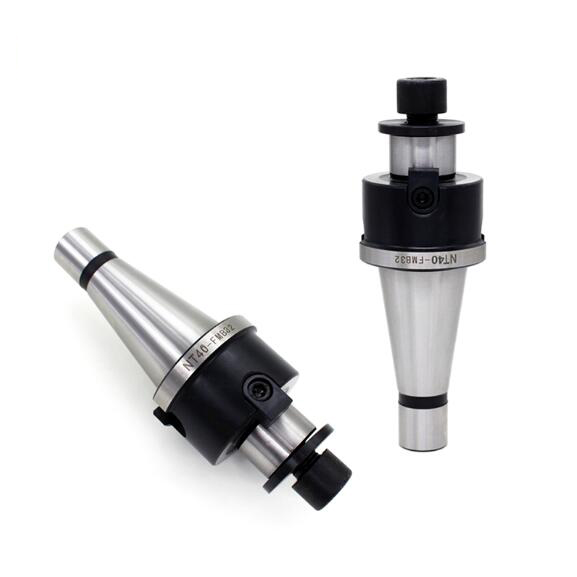

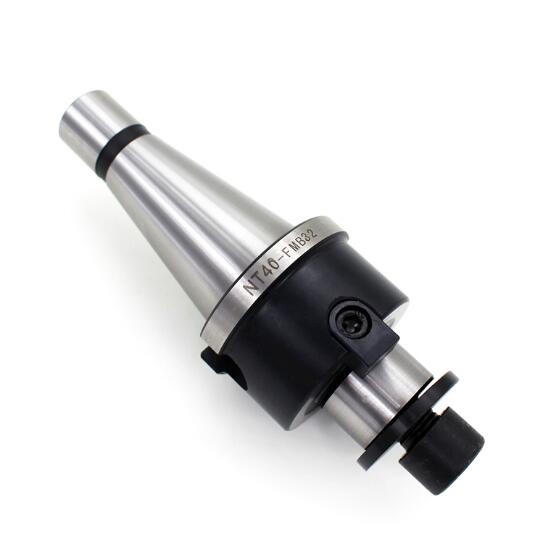

Model: NT40-FMB Morse Taper holder
Material: 20CrMnTi
Hardness: 58±2HRC
Surface roughness: Ra<0.4
NT40-FMB Collet Chuck holer
Description

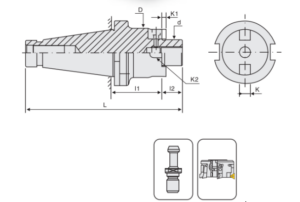

Specification |
d |
L |
L1 |
L2 |
K |
INCH |
METRIC |
NT40-FMB22-30 |
22 |
131.4 |
30 |
18 |
10 |
5/8”-1UNC |
M16*2.0 |
NT40-FMB27-30 |
27 |
133.4 |
30 |
20 |
12 |
5/8”-1UNC |
M16*2.0 |
NT40-FMB32-45 |
32 |
135.4 |
45 |
22 |
14 |
5/8”-1UNC |
M16*2.0 |
NT40-FMB40-50 |
40 |
138.4 |
50 |
25 |
16 |
5/8”-1UNC |
M16*2.0 |
NT50-FMB22-35 |
22 |
164.8 |
35 |
18 |
10 |
1”-8UNC |
M24*3.0 |
NT50-FMB27-35 |
27 |
166.8 |
35 |
20 |
12 |
1”-8UNC |
M24*3.0 |
NT50-FMB32-35 |
32 |
168.8 |
35 |
22 |
14 |
1”-8UNC |
M24*3.0 |
NT50-FMB40-35 |
40 |
216.8 |
35 |
25 |
16 |
1”-8UNC |
M24*3.0 |
NT50-FMB60-65 |
60 |
216.8 |
65 |
25 |
25.4 |
1”-8UNC |
M24*3.0 |
