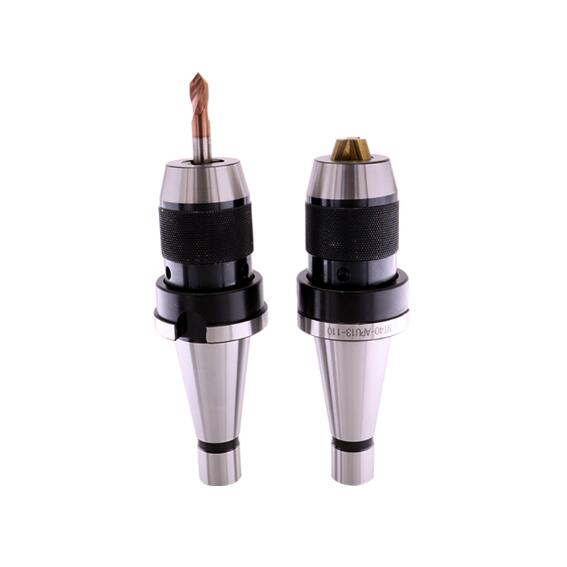

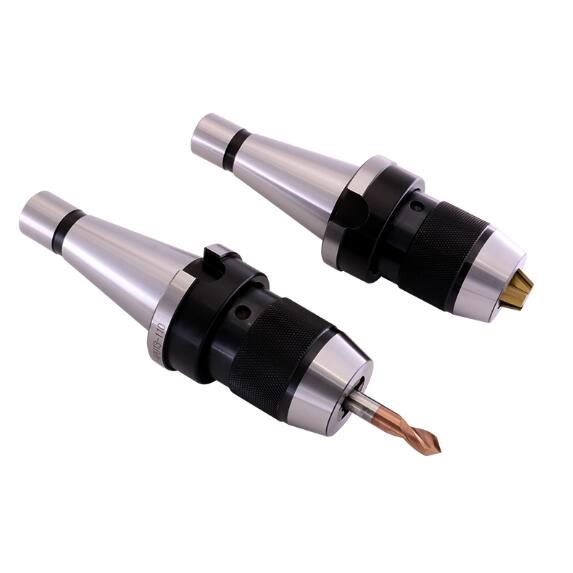

Model: NT30-APU Morse Taper holder
Material: 20CrMnTi
Hardness: 58±2HRC
Surface roughness: Ra<0.4
NT30-APU Collet Chuck holer
Description

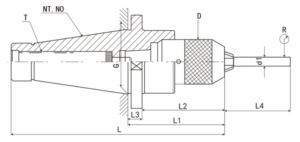

Model |
L |
L1 |
L2 |
L3 |
L4 |
R |
D |
d1 |
G |
T |
Range |
NT30-APU08-80L |
148.4 |
80 |
69 |
11 |
55 |
0.08 |
37 |
8 |
31.75 |
M12*1.75P |
0-8mm |
NT30-APU13-100L |
168.4 |
100 |
89 |
11 |
75 |
0.08 |
50 |
13 |
31.75 |
M12*1.75P |
1-13mm |
NT30-APU16-110L |
178.4 |
110 |
99 |
11 |
80 |
0.08 |
57 |
16 |
31.75 |
M12*1.75P |
1-16mm |
NT40-APU08-80L |
173.4 |
80 |
69 |
11 |
55 |
0.08 |
30 |
8 |
44.45 |
M16*2.0P |
0-8mm |
NT40-APU13-100L |
193.4 |
100 |
89 |
11 |
75 |
0.08 |
50 |
13 |
44.45 |
M16*2.0P |
1-13mm |
NT40-APU16-110L |
203.4 |
110 |
99 |
11 |
80 |
0.08 |
57 |
16 |
44.45 |
M16*2.0P |
1-16mm |
NT50-APU13-110L |
236.8 |
110 |
95 |
15 |
75 |
0.08 |
50 |
13 |
69.85 |
M24*3.0P |
1-13mm |
NT50-APU16-120L |
246.8 |
120 |
105 |
15 |
80 |
0.08 |
57 |
16 |
69.85 |
M24*3.0P |
1-16mm |
