Model: CAT40-ER Morse Taper holder
Material: 20CrMnTi
Hardness: 58±2HRC
Surface roughness: Ra<0.4

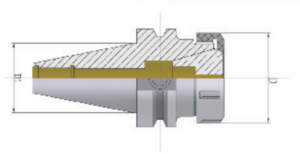

CAT40-ER Collet Chuck holer
Description
Model |
D |
d |
Clamping range |
CAT40-ER16-70 |
28 |
44.45 |
0.5-10 |
CAT40-ER16-100 |
28 |
44.45 |
0.5-10 |
CAT40-ER16-120 |
28 |
44.45 |
0.5-10 |
CAT40-ER20-70 |
35 |
44.45 |
0.5-13 |
CAT40-ER20-100 |
35 |
44.45 |
0.5-13 |
CAT40-ER25-70 |
42 |
44.45 |
0.5-16 |
CAT40-ER25-100 |
42 |
44.45 |
0.5-16 |
CAT40-ER25-150 |
42 |
44.45 |
0.5-16 |
CAT40-ER32-70 |
50 |
44.45 |
1-20 |
CAT40-ER32-100 |
50 |
44.45 |
1-20 |
CAT40-ER32-120 |
50 |
44.45 |
1-20 |
CAT40-ER32-150 |
50 |
44.45 |
1-20 |
CAT40-ER40-100 |
63 |
44.45 |
2-26 |
CAT40-ER40-120 |
63 |
44.45 |
2-26 |
