Model: BT40-C32 Morse Taper holder
Material: 20CrMnTi
Hardness: 58±2HRC
Surface roughness: Ra<0.4
BT40-C32 Collet Chuck holer
Description

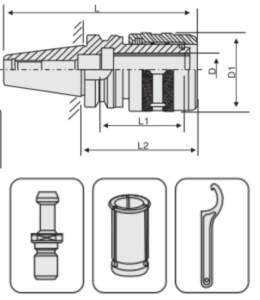

Specification |
D |
L2 |
L1 |
L |
D1 |
Suitable spanner |
Collet |
Weight(KG) |
BT30-C20-80L |
20 |
80 |
70 |
128.4 |
53 |
C20-BS |
C20 |
1.80 |
BT30-C25-80L |
25 |
80 |
73 |
128.4 |
60 |
C25-BS |
C25 |
1.95 |
BT40-C20-105L |
20 |
105 |
70 |
170.4 |
53 |
C20-BS |
C20 |
2.60 |
BT40-C25-105L |
25 |
105 |
73 |
170.4 |
60 |
C25-BS |
C25 |
2.65 |
BT40-C32-105L |
32 |
105 |
76 |
170.4 |
70 |
C32-BS |
C32 |
2.80 |
BT40-C32-135L |
32 |
135 |
76 |
200.4 |
70 |
C32-BS |
C32 |
3.00 |
BT40-C32-165L |
32 |
165 |
76 |
230.4 |
70 |
C32-BS |
C32 |
3.50 |
BT50-C20-105L |
20 |
105 |
70 |
206.8 |
53 |
C20-BS |
C20 |
4.50 |
BT50-C25-105L |
25 |
105 |
73 |
206.8 |
60 |
C25-BS |
C25 |
4.60 |
BT50-C32-105L |
32 |
105 |
95 |
206.8 |
70 |
C32-BS |
C32 |
5.15 |
BT50-C32-135L |
32 |
135 |
95 |
236.8 |
70 |
C32-BS |
C32 |
5.90 |
BT50-C32-165L |
32 |
165 |
95 |
266.8 |
70 |
C32-BS |
C32 |
6.60 |
BT50-C42-115L |
42 |
115 |
98 |
216.8 |
92 |
C42-BS |
C42 |
6.10 |
BT50-C42-135L |
42 |
135 |
98 |
236.8 |
92 |
C42-BS |
C42 |
6.60 |
BT50-C42-165L |
42 |
165 |
98 |
266.8 |
92 |
C42-BS |
C42 |
7.40 |
