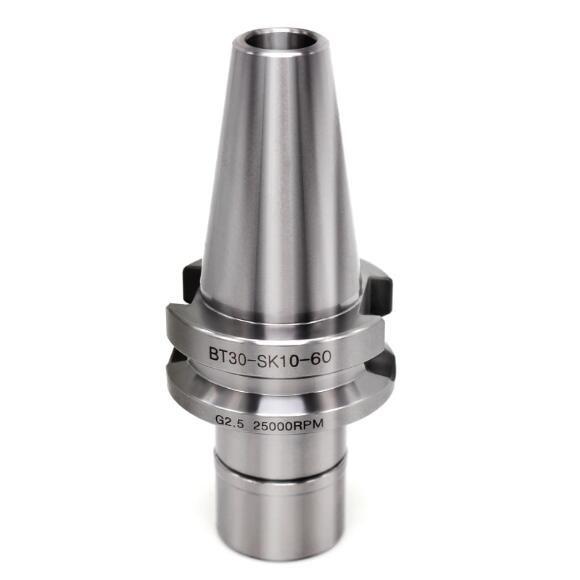

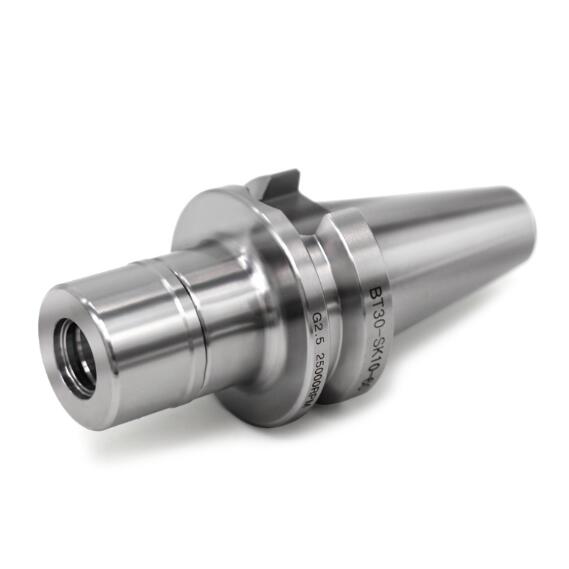

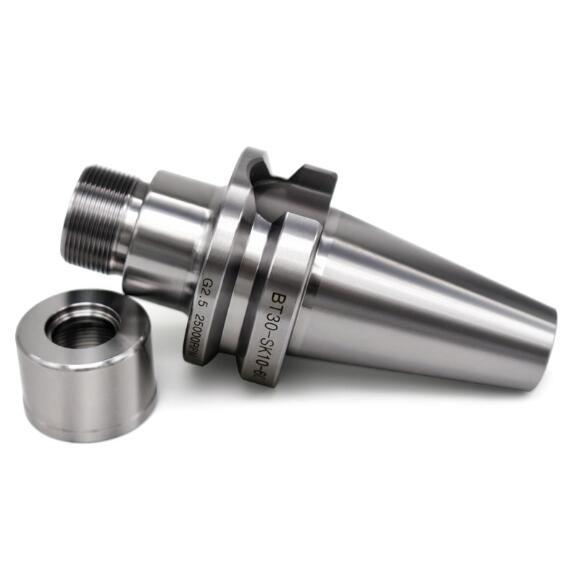

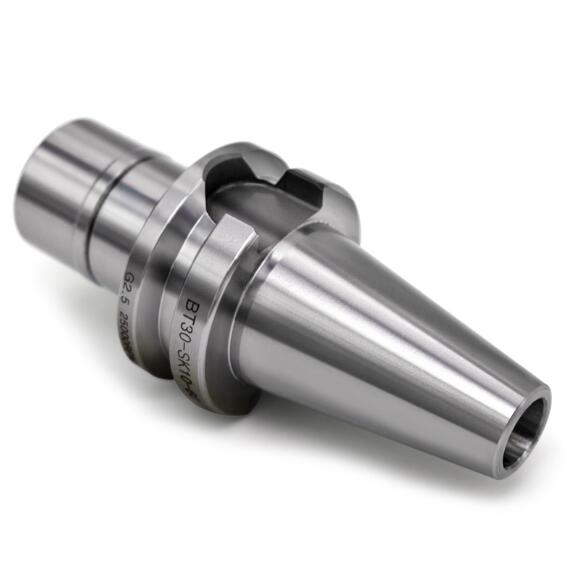

Model: BT30-SK Morse Taper holder
Material: 20CrMnTi
Hardness: 58±2HRC
Surface roughness: Ra<0.4
BT30-SK Collet Chuck holer
Description

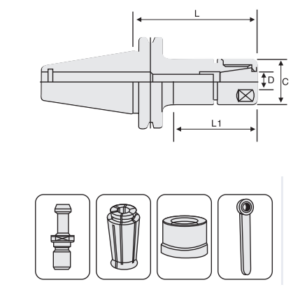

Specification |
Clamping range |
L |
L1 |
C |
GNO |
MAX.min-1 |
Collet |
BT30-SK6-60 |
2-6.0 |
60 |
38 |
19.5 |
SK6 |
40000 |
SK6 |
BT30-SK6-90 |
2-6.0 |
90 |
68 |
19.5 |
SK6 |
40000 |
SK6 |
BT30-SK10-60 |
2-10.0 |
60 |
38 |
27 |
SK10 |
40000 |
SK10 |
BT30-SK10-90 |
2-10.0 |
90 |
68 |
27 |
SK10 |
40000 |
SK10 |
BT30-SK16-60 |
3-16.0 |
60 |
38 |
40 |
SK16 |
30000 |
SK16 |
BT30-SK16-90 |
3-16.0 |
90 |
68 |
40 |
SK16 |
30000 |
SK16 |
BT30-SK20-60 |
3-20.0 |
60 |
38 |
48 |
SK20 |
30000 |
SK20 |
BT30-SK20-90 |
3-20.0 |
90 |
68 |
48 |
SK20 |
30000 |
SK20 |
BT40-SK6-60 |
2-6.0 |
60 |
33 |
19.5 |
SK6 |
30000 |
SK6 |
BT40-SK6-900 |
2-6.0 |
90 |
63 |
19.5 |
SK6 |
30000 |
SK6 |
BT40-SK6-120 |
2-6.0 |
120 |
93 |
19.5 |
SK6 |
30000 |
SK6 |
BT40-SK10-60 |
2-10.0 |
60 |
33 |
27 |
SK10 |
30000 |
SK10 |
BT40-SK10-90 |
2-10.0 |
90 |
63 |
27 |
SK10 |
30000 |
SK10 |
BT40-SK10-120 |
2-10.0 |
120 |
93 |
27 |
SK10 |
30000 |
SK10 |
BT40-SK16-60 |
3-16.0 |
60 |
33 |
40 |
SK16 |
25000 |
SK16 |
BT40-SK16-90 |
3-16.0 |
90 |
63 |
40 |
SK16 |
25000 |
SK16 |
BT40-SK16-120 |
3-16.0 |
120 |
93 |
40 |
SK16 |
25000 |
SK16 |
BT40-SK20-90 |
3-20 |
90 |
63 |
48 |
SK20 |
20000 |
SK20 |
BT50-SK10-100 |
2-10.0 |
100 |
73 |
27 |
SK10 |
20000 |
SK10 |
BT50-SK10-150 |
2-10.0 |
150 |
123 |
27 |
SK10 |
20000 |
SK10 |
BT50-SK10-200 |
2-10.0 |
200 |
173 |
27 |
SK10 |
20000 |
SK10 |
BT50-SK10-250 |
2-10.0 |
250 |
223 |
27 |
SK10 |
20000 |
SK10 |
BT50-SK16-100 |
3-16.0 |
100 |
73 |
40 |
SK16 |
20000 |
SK16 |
BT50-SK16-150 |
3-16.0 |
150 |
123 |
40 |
SK16 |
20000 |
SK16 |
BT50-SK16-200 |
3-16.0 |
200 |
173 |
40 |
SK16 |
20000 |
SK16 |
