BT30-FMB Collet Chuck holer

BT30-FMB Collet Chuck holer
BT30-FMB Collet Chuck holer - Image 2
BT30-FMB Collet Chuck holer - Image 3
BT30-FMB Collet Chuck holer - Image 4

BT30-FMB Collet Chuck holer

Model: BT30-FMB Morse Taper holder

Material: 20CrMnTi

Hardness: 58±2HRC

Surface roughness: Ra<0.4

Categories: , Tag:

Description

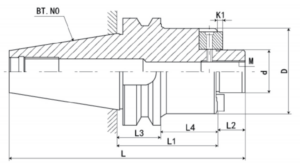

Model
L1
L
L2
L3
L4
d
D
K1
K2
M
WeightKGS
BT30-FMB16-60L
60
125.4
17
27
33
16
38
3.2
8
M8*1.25P
0.5
BT30-FMB22-45L
45
111.4
18
27
18
22
48
4.8
10
M10*1.5P
0.75
BT30-FMB22-60L
60
126.4
18
27
33
22
48
4.8
10
M10*1.5P
1.5
BT30-FMB27-45L
45
113.4
20
27
18
27
58
5.8
12
M12*1.75P
1.45
BT30-FMB27-60L
60
128.4
20
27
33
27
58
5.8
12
M12*1.75P
1.45
BT30-FMB32-45L
45
115.4
22
27
18
32
63
6.8
14
M16*2.0P
1.5
BT30-FMB32-60L
60
130.4
22
27
33
32
63
6.8
14
M16*2.0P
1.6
BT30-FMB40-60L
60
133.4
25
27
33
40
63
6.8
14
M16*2.0P
1.8
BT40-FMB16-60L
60
142.4
17
27
33
16
38
3.2
8
M8*1.25P
1.3
BT40-FMB16-100L
100
182.4
17
27
73
16
38
3.2
8
M8*1.25P
1.4
BT40-FMB22-60L
60
143.4
18
27
33
22
48
4.8
10
M10*1.5P
1.5
BT40-FMB22-100L
100
183.4
18
27
73
22
48
4.8
10
M10*1.5P
2.05
BT40-FMB22-150L
150
233.4
18
27
123
22
48
4.8
10
M10*1.5P
2.75
BT40-FMB22-200L
200
283.4
18
27
173
22
48
4.8
10
M10*1.5P
3.6
BT40-FMB22-250L
250
333.4
18
27
223
22
48
4.8
10
M10*1.5P
4.25
BT40-FMB22-300L
300
383.4
18
27
273
22
48
4.8
10
M10*1.5P
4.9
BT40-FMB22-350L
350
433.4
18
27
323
22
48
4.8
10
M10*1.5P
5.65
BT40-FMB22-400L
400
483.4
18
27
373
22
48
4.8
10
M10*1.5P
6.4
BT40-FMB22-450L
450
533.4
18
27
423
22
48
4.8
10
M10*1.5P
7.15
BT40-FMB22-500L
500
583.4
18
27
473
22
48
4.8
10
M10*1.5P
7.9
BT40-FMB27-60L
60
145.4
20
27
33
27
58
5.8
12
M12*1.75P
2.35
BT40-FMB27-100L
100
185.4
20
27
73
27
58
5.8
12
M12*1.75P
3.1
BT40-FMB27-150L
150
235.4
20
27
123
27
58
5.8
12
M12*1.75P
3.9
BT40-FMB27-200L
200
285.4
20
27
173
27
58
5.8
12
M12*1.75P
4.8
BT40-FMB27-250L
250
335.4
20
27
223
27
58
5.8
12
M12*1.75P
5.7
BT40-FMB27-300L
300
385.4
20
27
273
27
58
5.8
12
M12*1.75P
6.6
BT40-FMB32-60L
60
147.4
22
27
33
32
63
6.8
14
M16*2.0P
1.9
BT40-FMB32-100L
100
187.4
22
27
73
32
63
6.8
14
M16*2.0P
2.8
BT40-FMB32-150L
150
237.4
22
27
123
32
63
6.8
14
M16*2.0P
3.6
BT40-FMB32-200L
200
287.4
22
27
173
32
63
6.8
14
M16*2.0P
4.2
BT40-FMB40-60L
60
150.4
25
27
33
40
74
8.3
16
M16*2.0P
2.8
BT40-FMB40-100L
100
190.4
25
27
73
40
74
8.3
16
M16*2.0P
3.6
BT40-FMB40-150L
150
240.4
25
27
123
40
74
8.3
16
M16*2.0P
4.9
BT40-FMB40-200L
200
290.4
25
27
173
40
74
8.3
16
M16*2.0P
6.2
