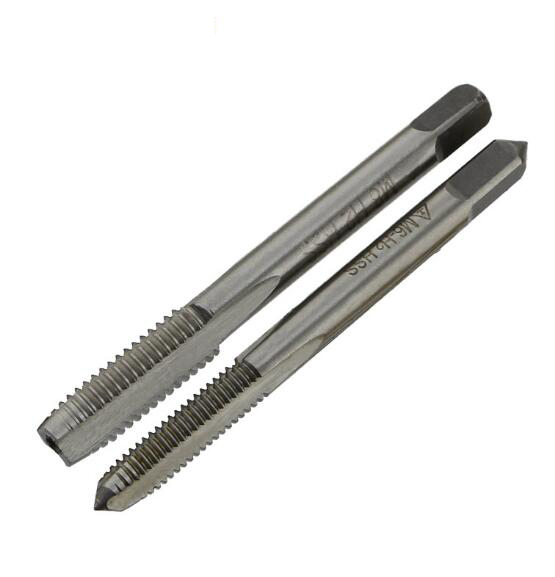

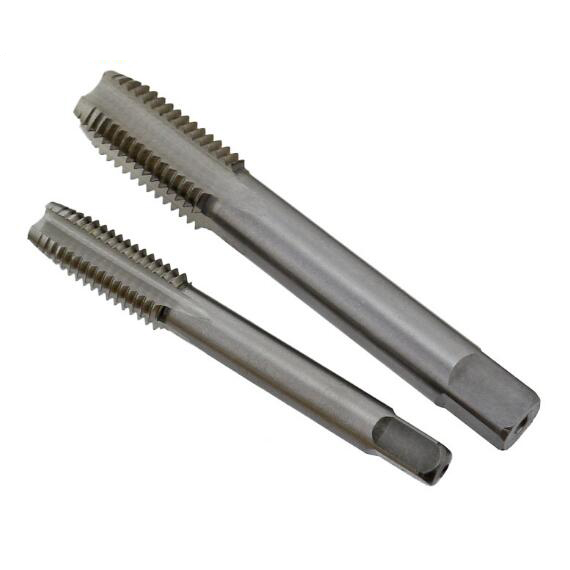

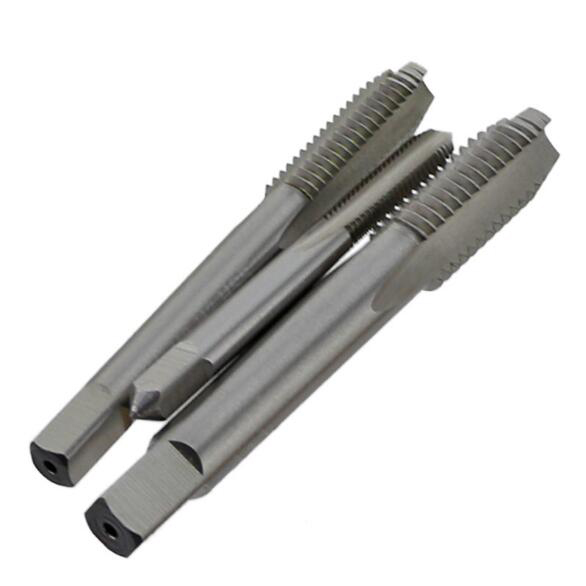

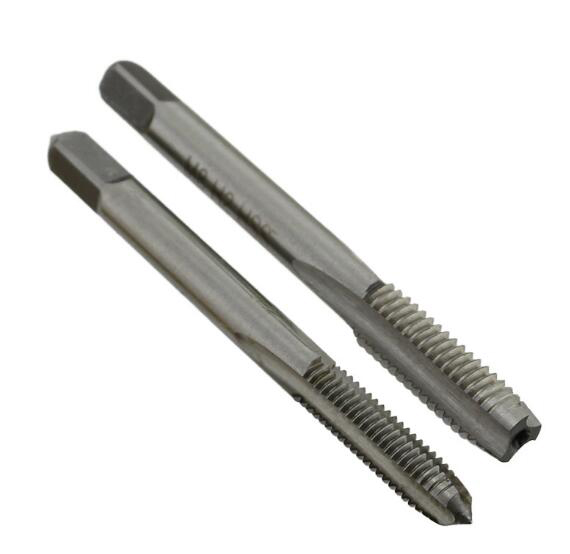

Model: Straight flute tap
Diameter:M3-M52mm
Process:: Full ground
Material: HSS M2
Standard:GB/T3464.1
Precision: H1,H2,H3
Thread type: M,MF,UNC,UNF,BSW,BSP are available.
Packing: 1Piece in a box.
Model: Straight flute tap
Diameter:M3-M52mm
Process:: Full ground
Material: HSS M2
Standard:GB/T3464.1
Precision: H1,H2,H3
Thread type: M,MF,UNC,UNF,BSW,BSP are available.
Packing: 1Piece in a box.

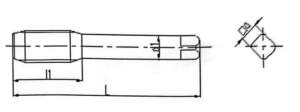

Model |
Pitch |
L |
I1 |
d1 |
口a |
M3*0.35 |
0.35 |
48 |
14.5 |
3.15 |
2.5 |
M4*0.5 |
0.5 |
53 |
17.0 |
4.0 |
3.15 |
M5*0.5 |
0.5 |
58 |
20.5 |
5.0 |
4.0 |
M6*0.5 |
0.5 |
66 |
24.5 |
6.30 |
5.0 |
M6*0.75 |
0.75 |
66 |
24.5 |
6.30 |
5.0 |
M7*0.75 |
0.75 |
66 |
19 |
5.6 |
4.5 |
M8*0.75 |
0.75 |
66 |
19 |
6.3 |
5.0 |
M8*1.0 |
1.0 |
72 |
22 |
6.3 |
5.0 |
M9*0.75 |
0.75 |
66 |
19 |
7.1 |
5.6 |
M9*1.0 |
1.0 |
72 |
22 |
7.1 |
5.6 |
M10*0.75 |
0.75 |
73 |
20 |
8.0 |
6.30 |
M10*1.0 |
1.0 |
80 |
24 |
8.0 |
6.30 |
M10*1.25 |
1.25 |
80 |
24 |
8.0 |
6.30 |
M12*1.0 |
1.0 |
80 |
22 |
9.0 |
7.10 |
M12*1.25 |
1.25 |
89 |
29 |
9.0 |
7.10 |
M12*1.5 |
1.5 |
89 |
29 |
9.0 |
7.10 |
M14*1.0 |
1.0 |
87 |
22 |
11.2 |
9.0 |
M14*1.25 |
1.25 |
95 |
30 |
11.2 |
9.0 |
M14*1.5 |
1.5 |
95 |
30 |
11.2 |
9.0 |
M16*1.0 |
1.0 |
92 |
22 |
12.5 |
10.0 |
M16*1.5 |
1.5 |
102 |
32 |
12.5 |
10.0 |
M18*1.0 |
1.0 |
97 |
22 |
14.0 |
11.2 |
M18*1.5 |
1.5 |
112 |
37 |
14.0 |
11.2 |
M18*2.0 |
2.0 |
112 |
37 |
14.0 |
11.2 |
M20*1.0 |
1.0 |
102 |
22 |
14.0 |
11.2 |
M20*1.5 |
1.5 |
112 |
37 |
14.0 |
11.2 |
M20*2.0 |
2.0 |
112 |
37 |
14.0 |
11.2 |
M22*1.0 |
1.0 |
109 |
24 |
16.0 |
12.5 |
M22*1.5 |
1.5 |
118 |
38 |
16.0 |
12.5 |
M22*2.0 |
2.0 |
118 |
38 |
16.0 |
12.5 |
M24*1.0 |
1.0 |
114 |
24 |
18.0 |
14.0 |
M24*1.5 |
1.5 |
130 |
45 |
18.0 |
14.0 |
M24*2.0 |
2.0 |
130 |
45 |
18.0 |
14.0 |
