Model: Round die
Diameter:M3-M52
Type: M,G(55°),ZG(55°),Z(60°)
Material: 9Sicr
Precision: 6g
Standard: DIN223/DIN382/DIN5159/BS1127
Packing: 1/5/10Piece in a box.

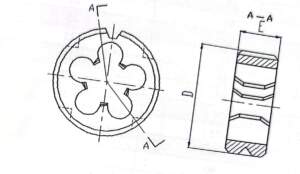

Round Die
Description
- The chips are discharged through the plane holes in round dies.
- Dies are made with a slot in the circumference and a special screw to allow for cutting a slightly smaller size.
- Dies are used to cut or clean an external thread,either used for manual use of die holders or clamped into the quill to used in a turning lathe.
Model
Pitch
Size
D
E
M1
0.25
12
3
M1.2
0.25
12
3
M1.4
0.3
12
3
M1.6
0.35
12
3
M1.7
0.35
12
3
M1.8
0.35
12
3
M2
0.4
12
3
M2.2
0.45
16
4
M2.3
0.45
16
4
M2.5
0.45
16
4
M2.6
0.45
16
4
M3
0.5
20
5
M4
0.7
20
5
M5
0.8
20
5
M6
1.0
20
7
M7
1.0
25
9
M8
1.25
25
9
M9
1.25
25
9
M10
1.5
30
11
M11
1.5
30
11
M12
1.75
38
14
M14
2.0
38
14
M16
2.0
45
18
M18
2.5
45
18
M20
2.5
45
18
M22
2.5
55
22
M24
3.0
55
22
M27
3
65
25
M30
3.5
65
25
M33
3.5
65
25
M36
4
65
25
M39
4
75
30
M42
4.5
75
30
M45
4.5
90
36
M48
5
90
36
M52
5
90
36
