BT40-ER Collet Chuck holer

BT40-ER Collet Chuck holer

Product Name: BT Chuck holder

Model: BT30-BT50

Categories: , Tag:

Description

Specification

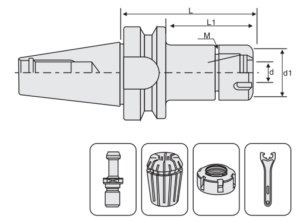

 Clamping range d1 L L1 M Nut Collet Spanner

Weight(KG)

BT30-ER16-70

 3-10 28 70 48 M22*1.5 ER16A ER16 ER16A 0.55

BT30-ER16-100

 3-10 28 100 78 M22*1.5 ER16A ER16 ER16A

0.80
BT30-ER20-70 3-13 34 70 48 M25*1.5 ER20A ER20 ER20A

0.75

BT30-ER20-100

 3-13 34 100 78 M25*1.5 ER20A ER20 ER20A 0.85

BT30-ER25-70

 3-16 42 70 48 M32*1.5 ER25UM ER25 ER25UM 0.70

BT30-ER25-100

 3-16 42 100 78 M32*1.5 ER25UM ER25 ER25UM

1.45
BT30-ER32-70 3-20 50 70 48 M40*1.5 ER32UM ER32 ER32UM

0.95
BT30-ER32-100 3-20 50 100 78 M40*1.5 ER32UM ER32 ER32UM

1.05

BT40-ER16-70

 3-10 28 70 43 M22*1.5 ER16A ER16 ER16A 1.20

BT40-ER16-100

 3-10 28 100 73 M22*1.5 ER16A ER16 ER16A 1.30
BT40-ER16-150 3-10 28 150 123 M22*1.5 ER16A ER16 ER16A

1.35

BT40-ER20-70

 3-13 34 70 43 M25*1.5 ER20A ER20 ER20A 1.40
BT40-ER20-100 3-13 34 100 73 M25*1.5 ER20A ER20 ER20A

1.50

BT40-ER20-150

 3-13 34 150 123 M25*1.5 ER20A ER20 ER20A 1.70
BT40-ER25-70 3-16 42 70 43 M32*1.5 ER25UM ER25 ER25UM

1.30

BT40-ER25-100

 3-16 42 100 73 M32*1.5 ER25UM ER25 ER25UM 1.65
BT40-ER25-150 3-16 42 150 123 M32*1.5 ER25UM ER25 ER25UM

2.25

BT40-ER32-70

 3-20 50 80 43 M40*1.5 ER32UM ER32 ER32UM 1.30
BT40-ER32-100 3-20 50 100 73 M40*1.5 ER32UM ER32 ER32UM

1.70

BT40-ER32-150

 3-20 50 150 123 M40*1.5 ER32UM ER32 ER32UM 2.50

BT40-ER40-100

 6-26 63 100 73 M50*1.5 ER40UM ER40 ER40UM 2.05
BT40-ER40-150 6-26 63 150 123 M50*1.5 ER40UM ER40 ER40UM

3.10

BT50-ER16-100

 3-10 28 100 62 M22*1.5 ER16A ER16 ER16A

4.30
BT50-ER16-150 3-10 28 150 112 M22*1.5 ER16A ER16 ER16A

4.50

BT50-ER20-100

 3-13 34 100 62 M25*1.5 ER20A ER20 ER20A 4.30
BT50-ER20-150 3-13 34 150 112 M25*1.5 ER20A ER20 ER20A

4.70

BT50-ER25-100

 3-16 42 100 62 M32*1.5 ER25UM ER25 ER25UM 4.40
BT50-ER25-150 3-16 42 150 112 M32*1.5 ER25UM ER25 ER25UM

5.50

BT50-ER32-100

 3-20 50 100 62 M40*1.5 ER32UM ER32 ER32UM 4.80
BT50-ER32-150 3-20 50 150 112 M40*1.5 ER32UM ER32 ER32UM

5.30

BT50-ER40-100

 6-26 63 100 62 M50*1.5 ER40UM ER40 ER40UM 4.40
BT50-ER40-150 6-26 63 150 112 M50*1.5 ER40UM ER40 ER40UM

5.50
