Simple Indexing Spacer
Description
|
Type |

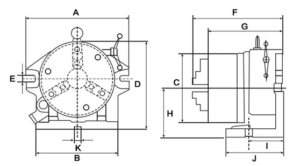

A | B | C | D | E | F | G | H | I | J | K |
|
F2 |
310 | 255 | 210 | 255.25 | 18 | 214 | 171.5 | 149.25 | 80 | 150 |
16 |
| F2-6 | 260 | 220 | 167 | 220 | 18 | 197.5 | 155.5 | 130 | 70 | 130 |
16 |
|
Specification |
F2 | F2-6 |
|
Center height mm |
149.25 |
130 |
| Center diameter of the spindle mm |
119.774 |
80 |
| Divisions |
3. 4. 6. 8. 12. 24 |
|
| Height between external centering diametre of the spindle to the base(in vertical position)mm |
96 |
89.5 |
| Locating diameter of the spindle mm |
F212 |
F170 |
| Width of the locating key mm |
16 |
16 |
| Matched chuck |
K31210A |
K31167 |
|
24 divisions individual error |
25 |
25 |
| Net weight (kg) |
52 |
33 |
| Gross weight (kg) |
60 |
39 |
