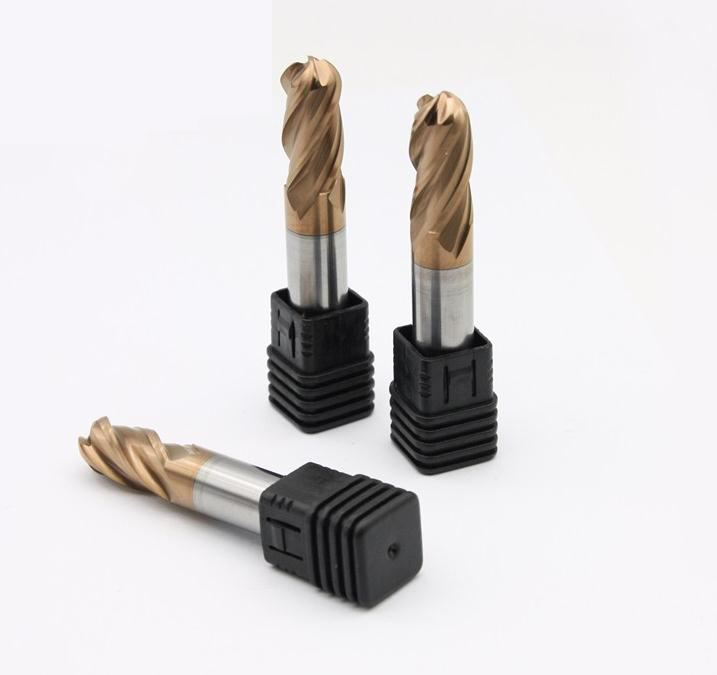

4F Ball Nose End Mill HRC55

4F Ball Nose End Mill HRC55

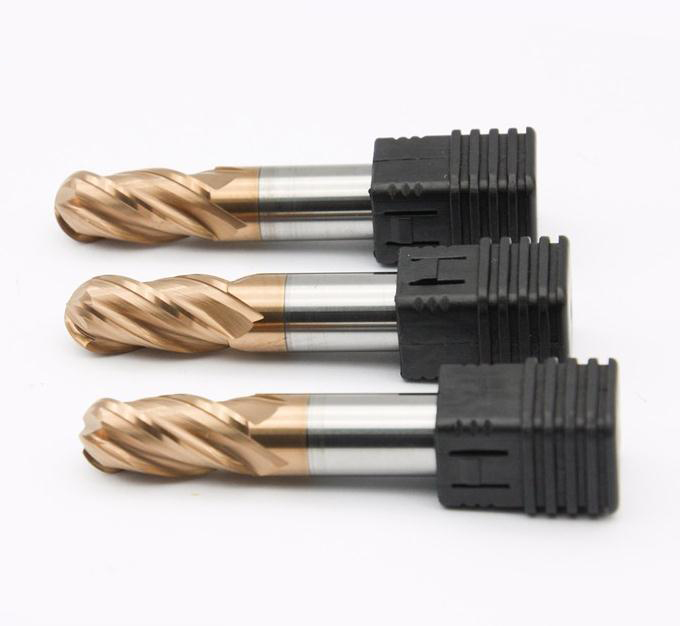

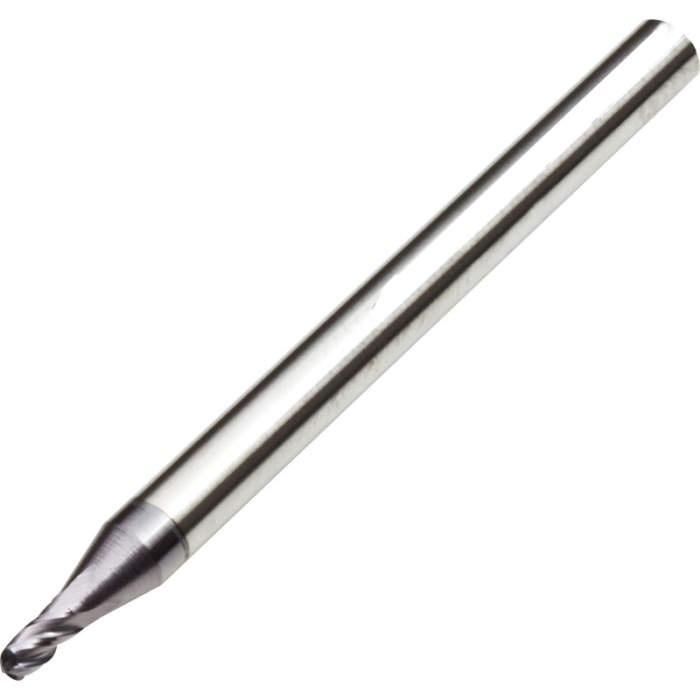

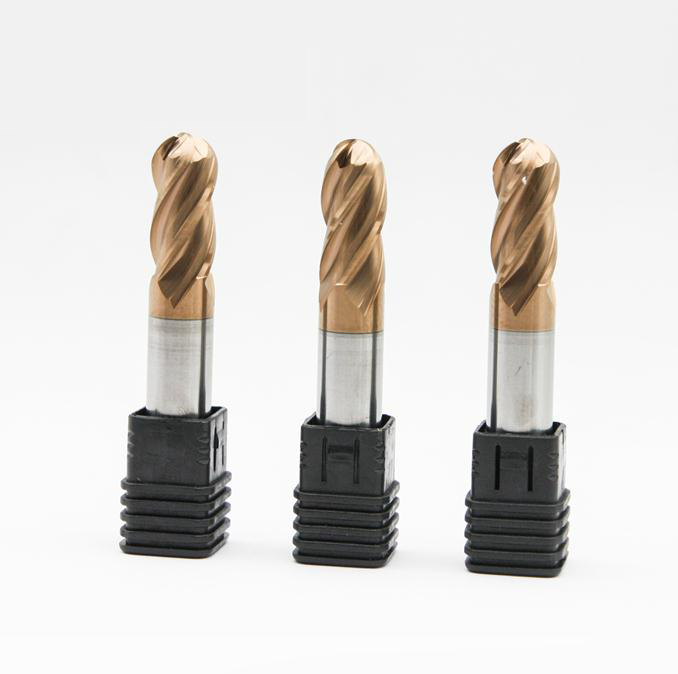

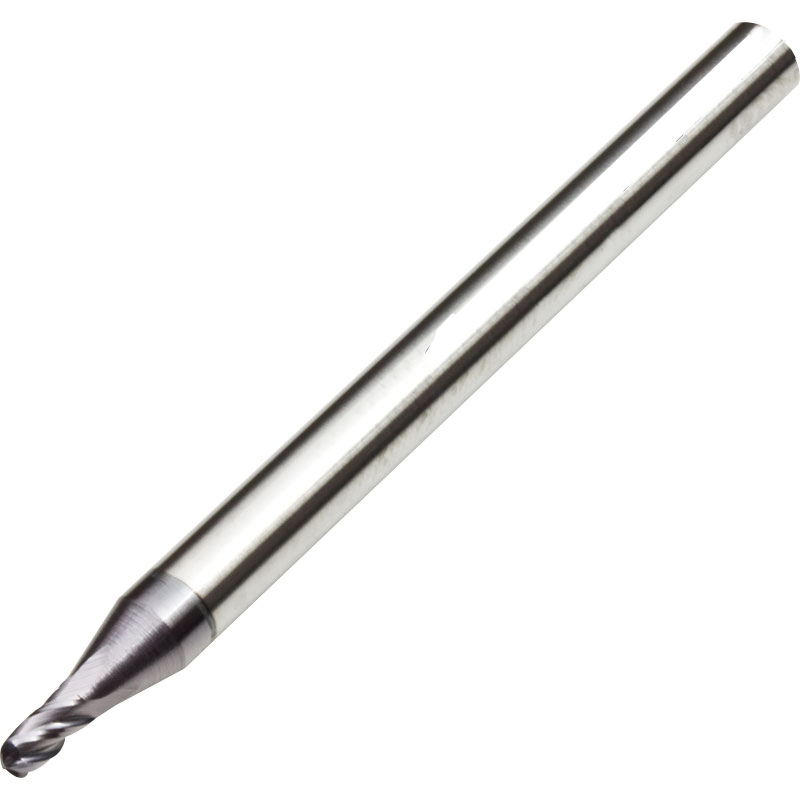

Solid Carbide Ball Nose End Mill

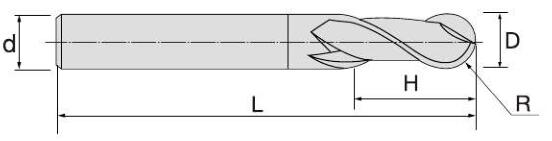

Flute Diameter:R0.5-R12.5mm

Type:Ball Nose End Mill

Flute: 4

Helix Angle: 35 degree

Hardness::HRC 45/HRC55/HRC60/HRC65

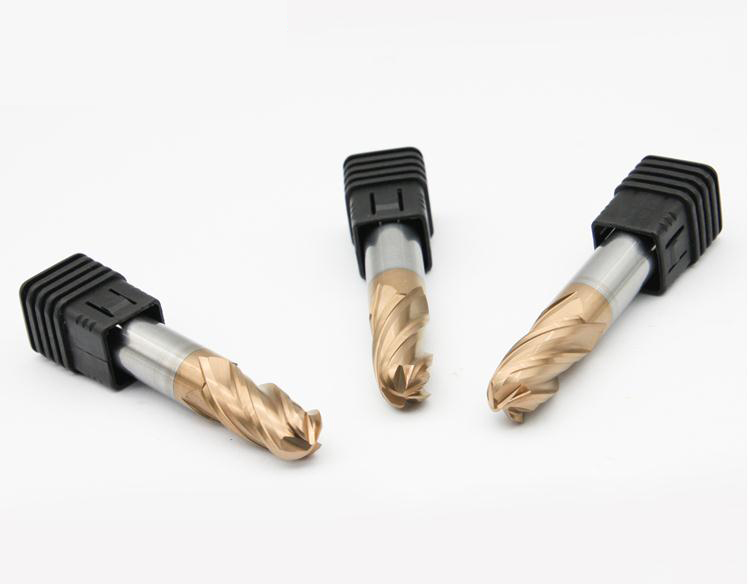

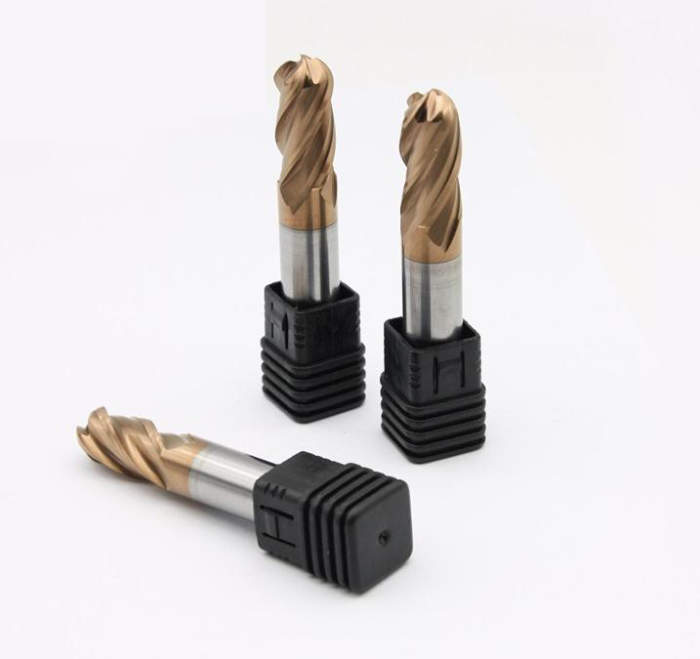

Coating: AlTiN, TiAlN, TiSiN, TiN, DLC,Nano, Diamond

Description

Solid Carbide Ball Nose End Mill

  • Widely used in the processing of high-hardness materials, such as tool steel,alloy steel,Pre-hardened mold steel,other high hardness of process.
  • Universal Type 2 Ball End Mills,can be used in copying and processing purposes.
  • Processed good surface roughness.
  • Layers with high heat resistance, can be high-speed processing.

Work Material:

Tolerance:

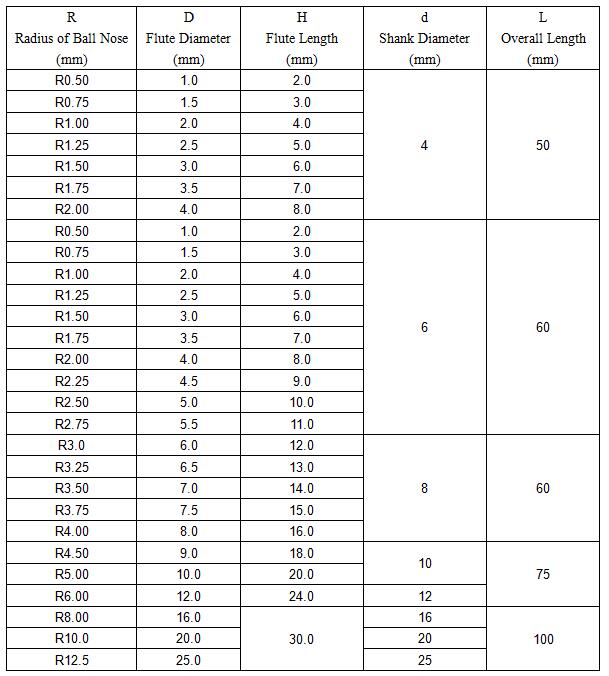

Diameter Standard:

Packing:
