2F Corner Radius End Mill HRC60

2F Corner Radius End Mill HRC60

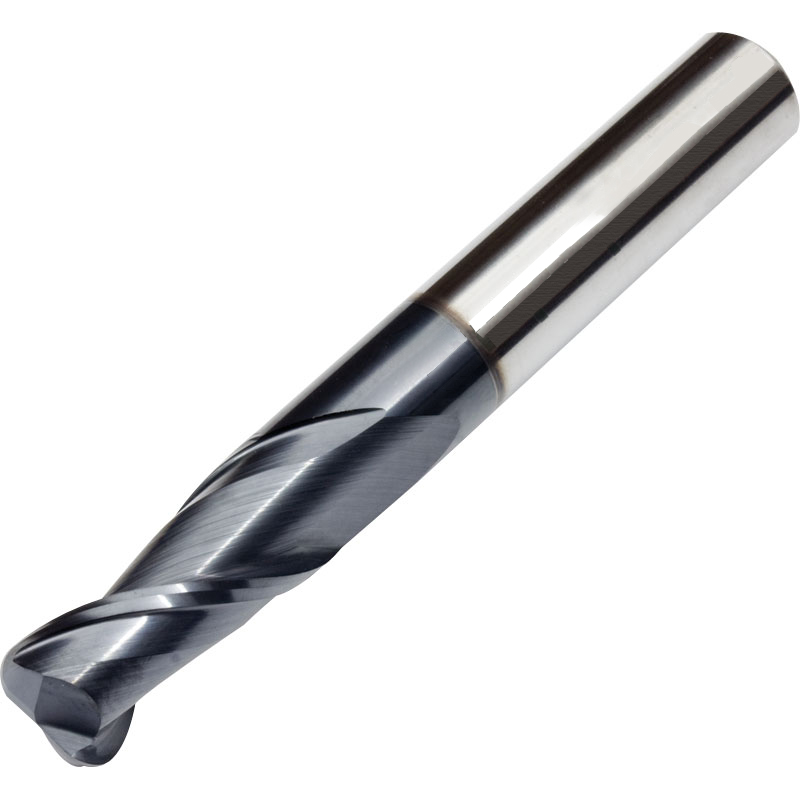

Solid Carbide Corner Radius End Mill

Flute Diameter:1.0-12.0mm

Type:Corner Radius End Mill

Flute: 2

Helix Angle: 35 degree

Hardness::HRC 45/HRC55/HRC60/HRC65

Coating: AlTiN, TiAlN, TiSiN, TiN, DLC,Nano, Diamond

Description

Solid Carbide Corner Radius End Mill

  • Widely used in the processing of high-hardness materials, such as copper,cast iron,carbon steel, and Mould steel processing.
  • With highly heat-resistant ALTIN coating, can be used for high-speed processing.
  • Arc angle blade tip design prevents chipping.

Work Material:

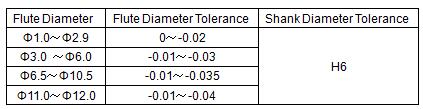

Tolerance:

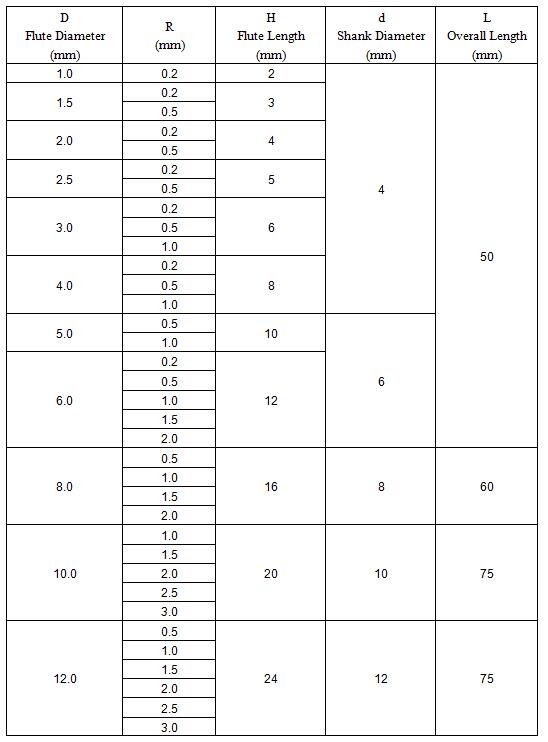

Diameter Standard:

Packing:
